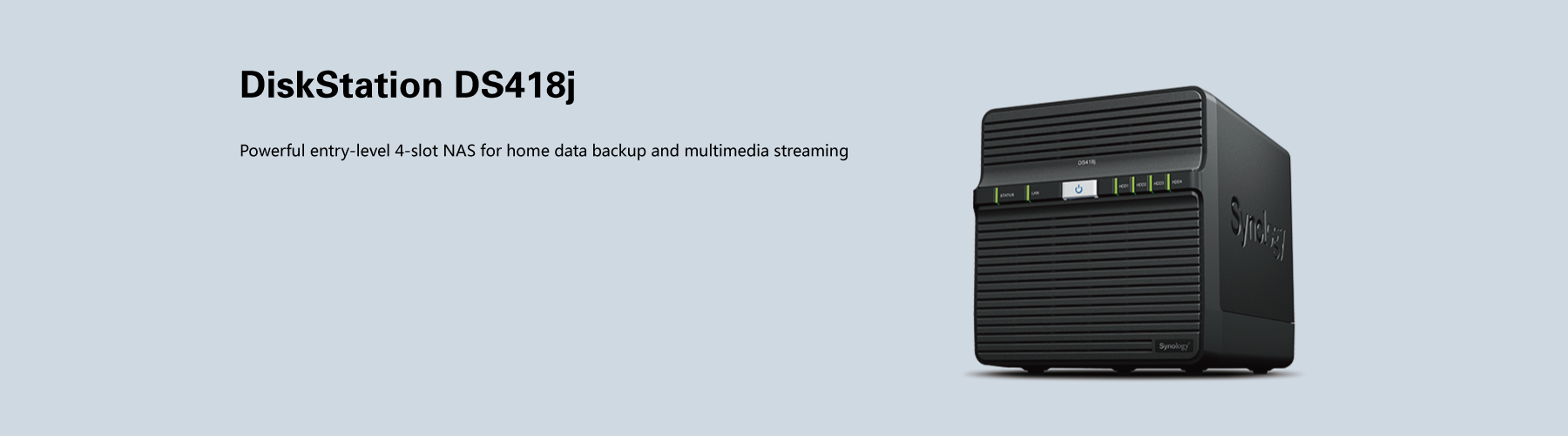

DS418j
The DS418j is a four-slot NAS server designed for home and personal users to efficiently manage, secure and share data. Its new 64-bit dual-core processor supports over 40 TB of raw single-volume capacity for flexible data management.

Application Field

The DS418j is a four-slot NAS server designed for home and personal users to efficiently manage, secure and share data.


Its new 64-bit dual-core processor supports over 40 TB of raw single-volume capacity for flexible data management.


Product Features

GuangZhou Tian Ao Information Technology Co., Ltd.



Good choice for private clouds



The DS418j is a four-slot NAS server designed for home and personal users to efficiently manage, secure and share data.


Its new 64-bit dual-core processor supports over 40 TB of raw single-volume capacity for flexible data management.


CPU: 64-bit dual core 1.4GHz

Memory capacity: twice the memory capacity, 1GB DDR4

Powerful performance: Encrypted read speeds up to 112 MB per second, encrypted write speeds up to 87 MB per second

Environmentally friendly design: 21.22 W (access); 8.97 W (hard disk hibernation)







Stream content to TV



Turn your Synology NAS into your home media center and stream digital content to your favorite devices

Such as computers, mobile devices, Samsung TV, Apple TV, Google Chromecast, and DLNA devices.



GuangZhou Tian Ao Information Technology Co., Ltd.


Apple TV


GuangZhou Tian Ao Information Technology Co., Ltd.


Android TV


GuangZhou Tian Ao Information Technology Co., Ltd.


Samsung TV






Centralized backup storage for computers


You can back up any device, whether it's a Windows computer, a MAC, or another device.

Synology's comprehensive multi-version backup solution protects your PC and NAS from malicious attacks, including the growing threat of crypto-ransomware.





Synology Hybrid RAID (SHR) Technology


Storage Management is an easy-to-use Synology Hybrid RAID (SHR) technology.

SHR is an automated RAID management system that allows users to easily create and augment storage volumes and migrate RAID types.

No need to know the details of the RAID. The SHR will provide 1 to 2 hard disk redundancy to protect data in the event of a hard disk failure.


Cost effective

When using HDDs with different capacities, SHR can take full advantage of the data capabilities of RAID. Calculate your RAID needs.


Easy to manage

Novice users have no technical background and still want to use RAID technology to protect their data. For them, the installation wizard is very convenient and will guide them through all the steps in the first installation.


Scalability

Add a new hard drive to the Storage Manager at any time with a single click.


flexibility

You can schedule this when you create a volume, and reserve unallocated space for later use.






Easy access to files via QuickConnect


With QuickConnect, you can easily access files on your Synology NAS over the Internet.

There is no need to set up port forwarding rules, DDNS, or other complex network settings.

QuickConnect allows you to access audio and video content and work files on connected devices at no additional cost by connecting to a secure, customizable URL.


GuangZhou Tian Ao Information Technology Co., Ltd.






Seamless integration with equipment


Synology mobile apps are designed to give you fast, secure access to your data anytime, anywhere.






GuangZhou Tian Ao Information Technology Co., Ltd.GuangZhou Tian Ao Information Technology Co., Ltd.



1
Status Indicator
2
Network indicator
3
Power button and indicator
4
Hard disk status indicator
5
1GbE RJ-45 port
6
Power port
7
Kensington Security Slot
8
fan
9
USB 3.0 port
10
Reset button

Operating System

Surveillance Station Provide home monitoring solutions to meet your video and monitoring needs.
More
Safety Built-in comprehensive security tools are constantly updated to protect your device from ever-changing threats.
More
DSM OS UI The DSM operating system has been recognized by the media for an intuitive user interface and great features.
More
PC Backup Whether you're using a PC, Mac or mobile device, PC Backup provides a simple backup solution.
More
File Server Built-in powerful file management and sharing services.
More
Multimedia Diverse multimedia management, streaming and playback solutions.
More

Technical Specifications

Product Model DiskStation DS418j
CPU Realtek RTD1293
CPU Type 處理器架構:64-bit
處理器頻率:雙核心 1.4 GHz
Hard Disk Synology Hybrid RAID
Basic
JBOD
RAID 0
RAID 1
RAID 5
RAID 6
RAID 10
RAM 1 GB DDR4
Storage Function 3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
Storage Management 最大內部凈總儲存容量:56 TB (14 TB drive x 4)
最大單一儲存空間容量:108 TB
System 內部磁盤:EXT4
外接磁盤:EXT4/EXT3/FAT/NTFS/HFS+/exFAT*
FPS H.264 480 FPS @ 720p (1280x720)
240 FPS @ 1080p (1920x1080)
150 FPS @ 3M (2048x1536)
100 FPS @ 5M (2591x1944)
70 FPS @ 4K (3840x2160)
FPS MJPEG 224 FPS @ 720p (1280x720)
150 FPS @ 1080p (1920x1080)
100 FPS @ 3M (2048x1536)
60 FPS @ 5M (2591x1944)
Peripheral Interface RJ-45 1GbE 網絡孔:1
USB 3.0 端口:2
Max Connections 10
Certification EAC
CCC
RCM
KC
FCC
CE
BSMI
Surroundings 符合 RoHS 標準
Temperature 工作溫度:5°C 至 40°C (40°F 至 104°F)
存儲溫度:-20°C 至 60°C (-5°F 至 140°F)
相對濕度:5% 至 95% RH
Packaging 主機 X 1
配件包 X 1
變壓器 X 1
電源線 X 1
RJ-45 網絡線 X 1
快速安裝指南 X 1
Dimensions 大小 (高 X 寬 X 深):184 mm x 168 mm x 230 mm
重量:2.21 公斤
Optional 監控裝置授權
VS360HD
VS960HD
Weight 2.21 公斤
Warranty 2年
